ACCORDING TO STRICT QUALITY REQUIREMENTS

WHEEL SCREWS, WHEEL NUTS & RIM LOCKS

ORIGINAL SPARE PARTS & ACCESSORIES

FIND THE RIGHT WHEEL SCREWS NOW

H&R wheel screws are manufactured according to strict quality requirements. They are the perfect choice for connecting your vehicle’s wheels firmly and, above all, securely to the wheel hub.
Since immense forces act on the wheel during acceleration, braking and lateral load changes, it must be ensured at all times that the appropriate wheel screws are used!
Make sure that the wheel screws fit perfectly, have sufficient screw-in depth and the correct tightening torque in order to be able to fully guarantee the fastening of the wheels.

For standard & aftermarket wheels

Available in black & silver

Extensive range

Know How

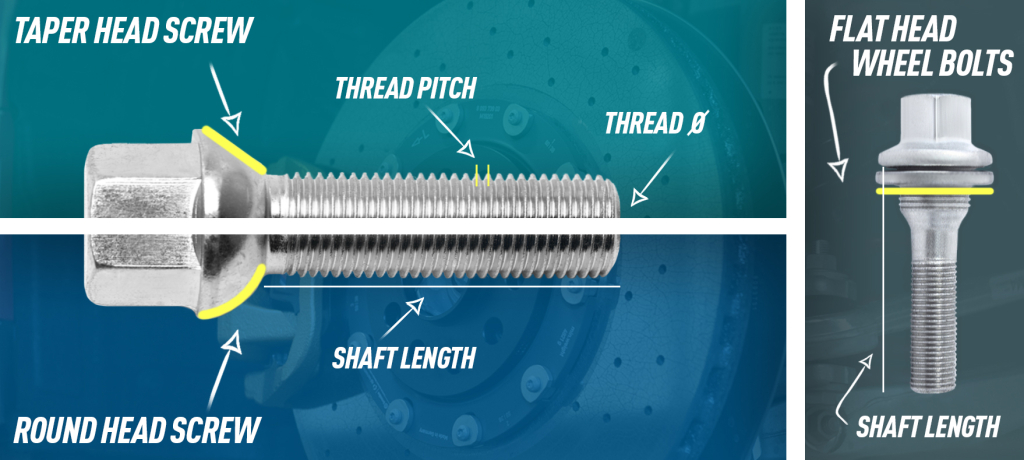

HOW TO MEASURE?

Check the design of the existing wheel screws. The screw head of the new wheel screw must be identical to that of the currently installed wheel screw. Please note the different designs of the screw collar/head (e.g. taper , flat or round head). For spherical collar wheel screws, make sure that the correct spherical radius (R12, R13, R14) is selected. Consider the different thread pitches of wheel screws: M12x1.25mm, M12x1.5mm, M12x1.75mm, M14x1.25mm, M14x1.5mm, M15x1.25mm. If you plan to use a wheel spacer, add the thickness of the spacer to the shaft length of the current wheel screw to determine the required shaft length of the new wheel screw.

FOR OUR WHEEL SPACERS

  • For standard & special wheels
  • Available in silver and black
  • Quality made in Germany

THE COMPLETE WHEEL BOLT ASSORTMENT

  • Wheel bolts, nuts & studs
  • Wheel locks
  • Quality made in Germany
Know this

THE DIFFERENCE BETWEEN WHEEL SCREWS AND STUD BOLTS

There are two types of wheel fastening. A distinction is made between wheel screws and stud bolts with nuts.Wheel screws are inserted through the wheel and screwed to the wheel hub. In contrast, stud bolts are already firmly mounted in the wheel hub originally. The wheel is then fastened by using wheel nuts.

No matter which type of wheel mounting you need for your vehicle: H&R has a huge product range for wheel fasteners of all kinds.

FIND A DEALER NOW
WHEEL MOUNTS FOR EVERY NEED

DISCOVER OUR EXTENSIVE RANGE

We have almost every conceivable type of wheel fastener, in the most diverse designs. Whether flat head, conical/taper head or spherical/round head, with or without movable cone – we offer the optimum solution for mounting your wheels. All H&R components are subject to strict quality requirements.

H&R WHEEL MOUNTING

Download

TAPER HEAD SCREW

H&R taper head screws have a taper head (60°) and are available in various lengths, diameters and thread pitches. Available in black and silver.

TAPER HEAD SCREW WITH MOVABLE CONE

H&R taper head screws have a movable taper cone (60°) and are available in various lengths, diameters and thread pitches. Available in black and silver.

ROUND HEAD SCREW

H&R round head screws have a spherical cone (radius R12, R13, R14) and are available in various lengths, diameters and thread pitches. Available in black and silver.

ROUND HEAD SCREW WITH MOVABLE CONE

H&R round head screws have a movable ball cone (radius R12, R13, R14) and are available in various designs, lengths, diameters and thread pitches. Available in black and silver.

FLAT HEAD WHEEL BOLTS

H&R wheel screws with flat head have an additional washer. They are available in various lengths. H&R components are subject to strict quality requirements.

WHEEL LOCK

H&R WHEEL locks are subject to strict quality requirements and protect your wheels from theft. In combination with H&R wheel spacers, longer wheel screws are often required – we also have suitable wheel locks for this. Available in black and silver.

FASTENING NUTS

H&R fastening nuts for vehicles with stud bolts are available in various designs, lengths and thread pitches. Available in black and silver.

Quicksafe

H&R Quicksafe bolts offer the possibility to convert the wheel fastening of your vehicle from standard wheel screws to studs/bolts.

Fitment made in Germany

COMBINE WITH OUR H&R WHEEL SPACERS
