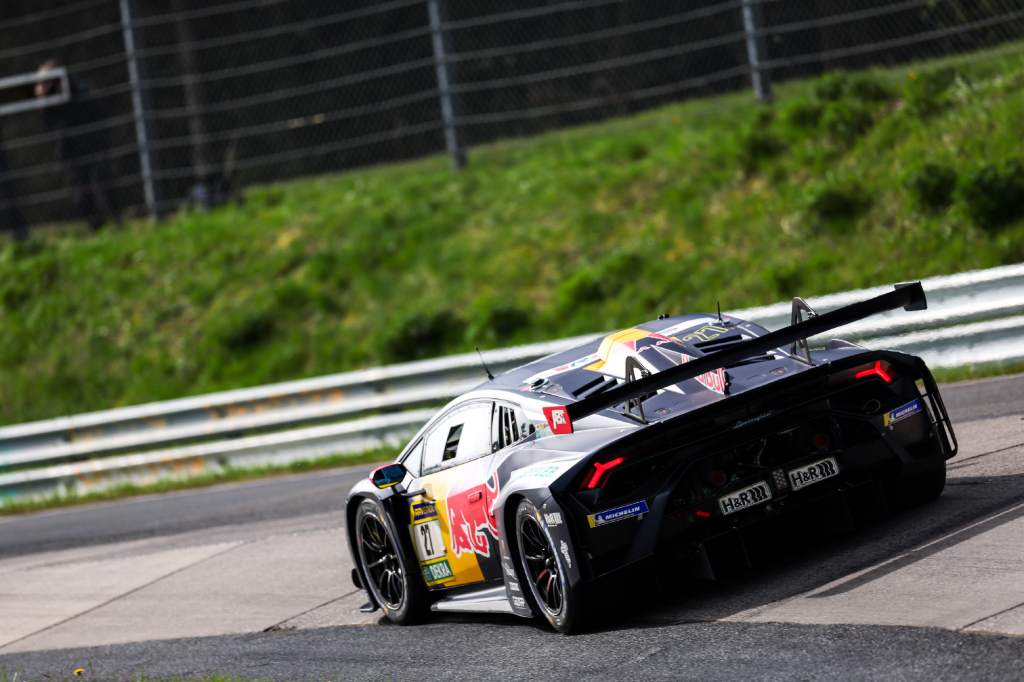

Abt Lamborghini Huracán GT3 EVO2 with H&R racing springs
ABT Sportsline entered this year´s Nürburgring 24h race with the Huracán GT3 EVO2 and finished in the top five. Lamborghini Squadra Corse designed the racing car based on the Huracán STO, with which it shares important design elements such as the unmistakable hexagonal air scoop and the rear fin. The pure rear-wheel drive and the self-inducted V10 engine are also part of the Huracán STO DNA.

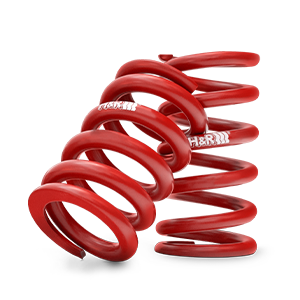

The 585 hp car weighs just 1,230 kilograms and reaches a top speed of around 275 km/h. Also on board are specially manufactured H&R racing springs that, in conjunction with the height-adjustable racing suspension, ensure a perfect setup. The GT3 EVO2 complies with the technical regulations of the FIA 2022.
Technical data:
Lamborghini Huracán GT3 EVO2
Engine: 5.2 litre 10-cylinder self-inducted engine (90° V-angle), petrol direct injection IDS,
dry sump lubrication, compression ratio 12.7:1, Bosch Motorsport MS6.4 control unit
Suspension: Height-adjustable racing suspension with double wishbones,
3-way adjustable stabilizers, H&R racing springs
Drive type: Rear-wheel drive with mechanical self-locking differential,
10-stage Bosch Motorsport traction control adjustable via the steering wheel
Transmission: sequential, pneumatically actuated 6-speed transmission from Hör,
3-plate racing clutch controlled hydraulically via paddles on the steering wheel, lightweight flywheel
Chassis: Hybrid chassis made of aluminium and carbon fibre,
outer panels made of carbon composites with quick-release fasteners (DZUS)
Wheels: front 12×18” ET45.65 with Michelin Confidential 300/680-18
rear 13×18” ET37.85 with Michelin Confidential 310/710-18
Brakes: front Tm Racing 380×34 mm, 6-piston monobloc brake callipers,
rear Tm 355×32 mm, 4-piston monobloc brake callipers
Dimensions: Length 4551 mm, width 2221 mm (with exterior mirrors)
Weight: Dry weight 1,230 kg
Tank: 120 litres, FT3 standard
